* Compact design
* Sizes range from 1/8″ to 1/2″, and 6 mm to 12 mm
* Stainless steel 316, 316L, 316L VAR Material
* Working temperature from -198°C (-325°F) to 538°C (1000°F)
* 3 options of cleaning and packaging: standard, high purity and ultra-high purity
* Permanently Heat code marked; traceable to original mill certificate of test
* Electropolished components permanently marked with designator on cube
* Critical surfaces are 100% visually inspected using magnification and lighting
* All fittings come with high-quality appearance

DESCRIPTION

I Series – Micro Weld Fittings

Features

* Compact design, applicable for small size weld system

* Sizes range from 1/8″ to 1/2″, and 6 mm to 12 mm

* Elbows with radius junction to offer smooth flow path

* Precision machined to match tube diameter

* Burr-free tube ends to enhance alignment

* 100% visual inspection on key parts under magnifier and good light conditions

* Standard surface roughness finished to an average of Ra 10 μin. (0.25 μm) or electropolished to Ra 5 μin. (0.13 μm)

* Permanent traceable identification marked on each fitting

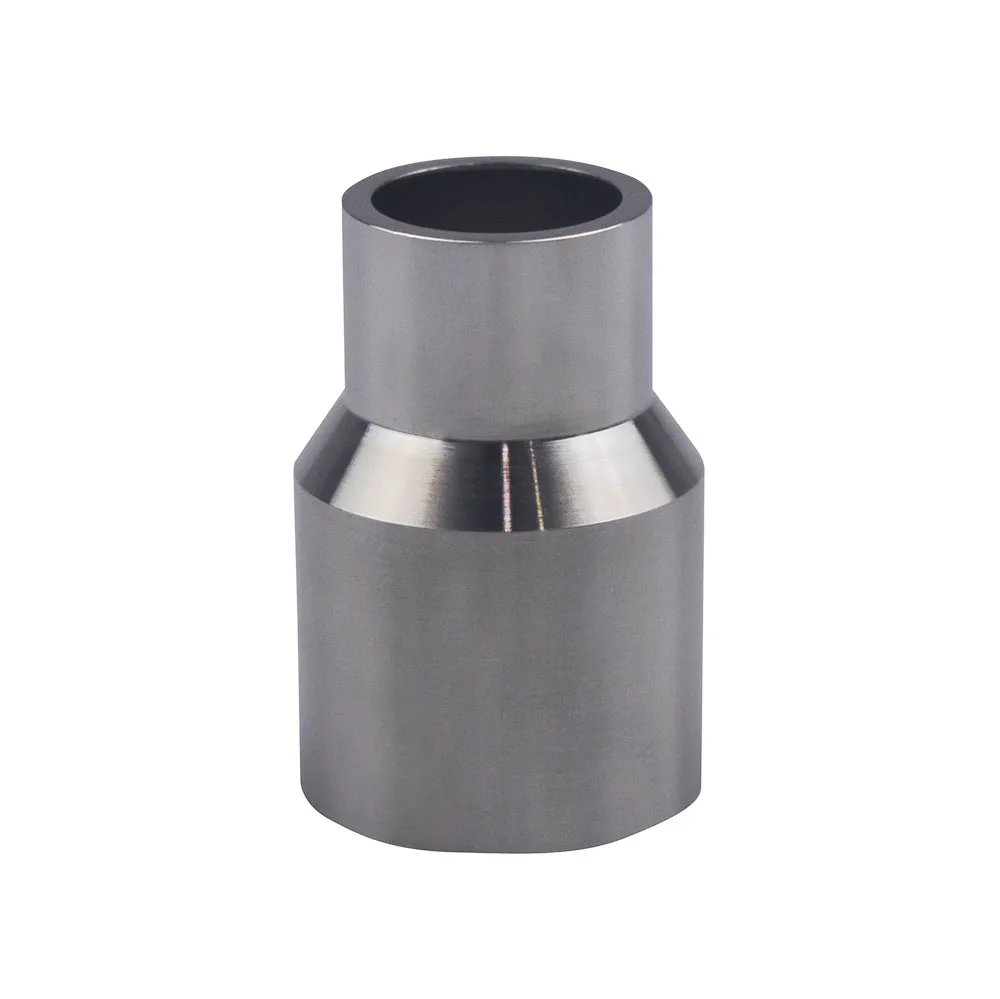

Reducing Unions, P/N: -IU-TB4-TB2 etc.

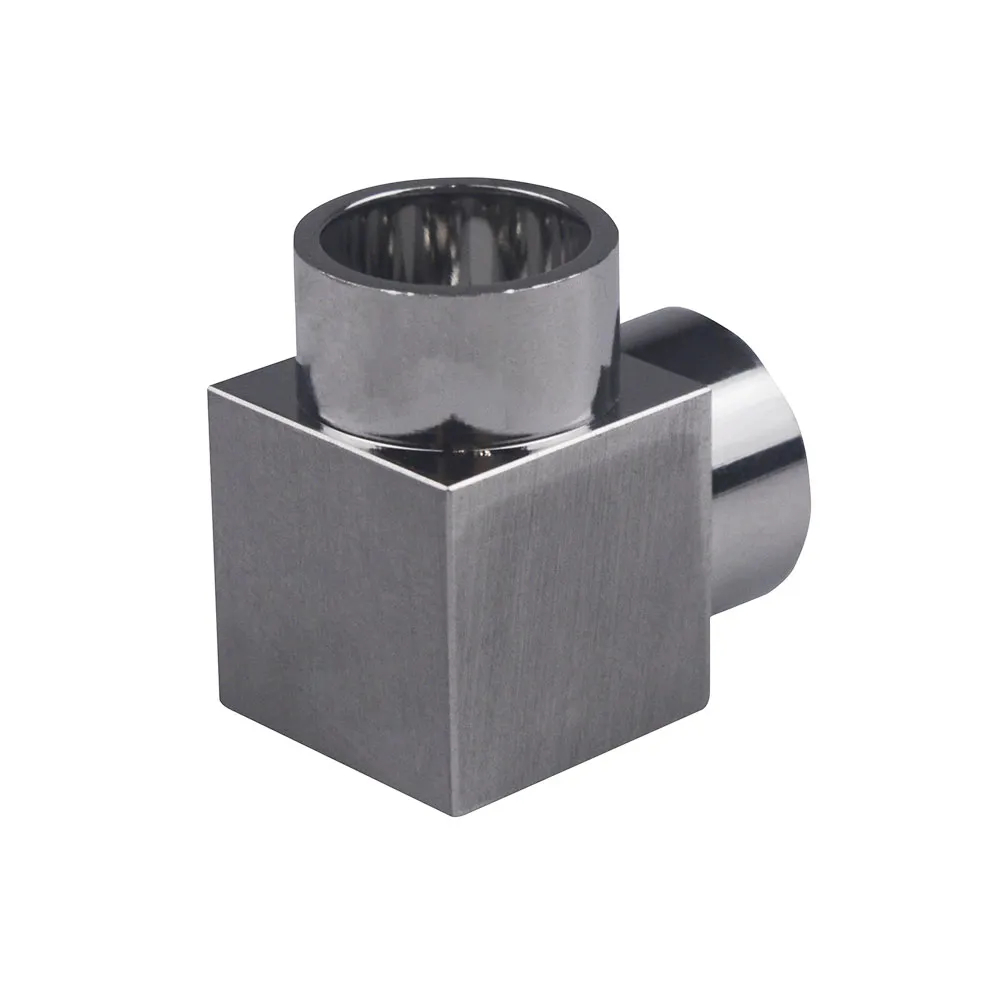

90°Union Elbows, P/N: -IE-TB2 -IE-TB6M etc.

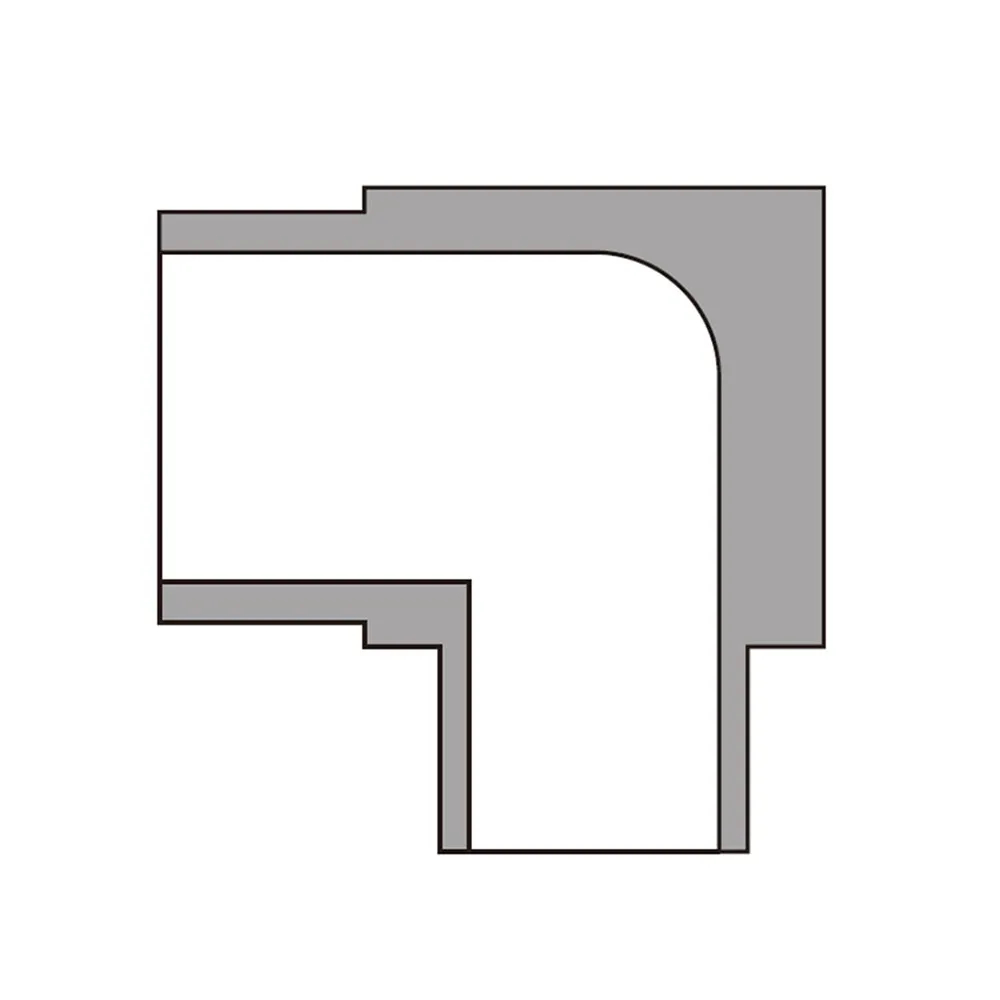

Reducing 90° Union Elbows, P/N: -IE-TB6-TB4 -IE-TB8M-TB6M etc.

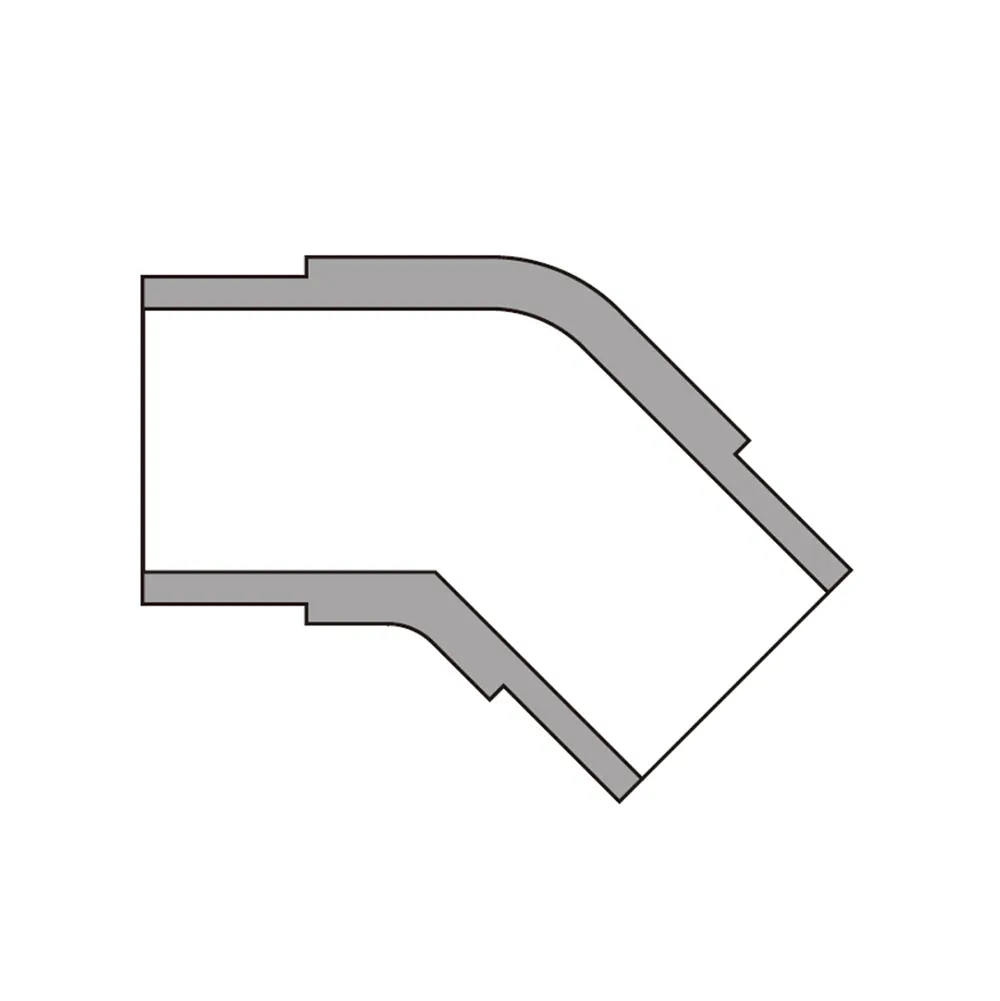

45° Union Elbows P/N: -IV-TB4 etc.

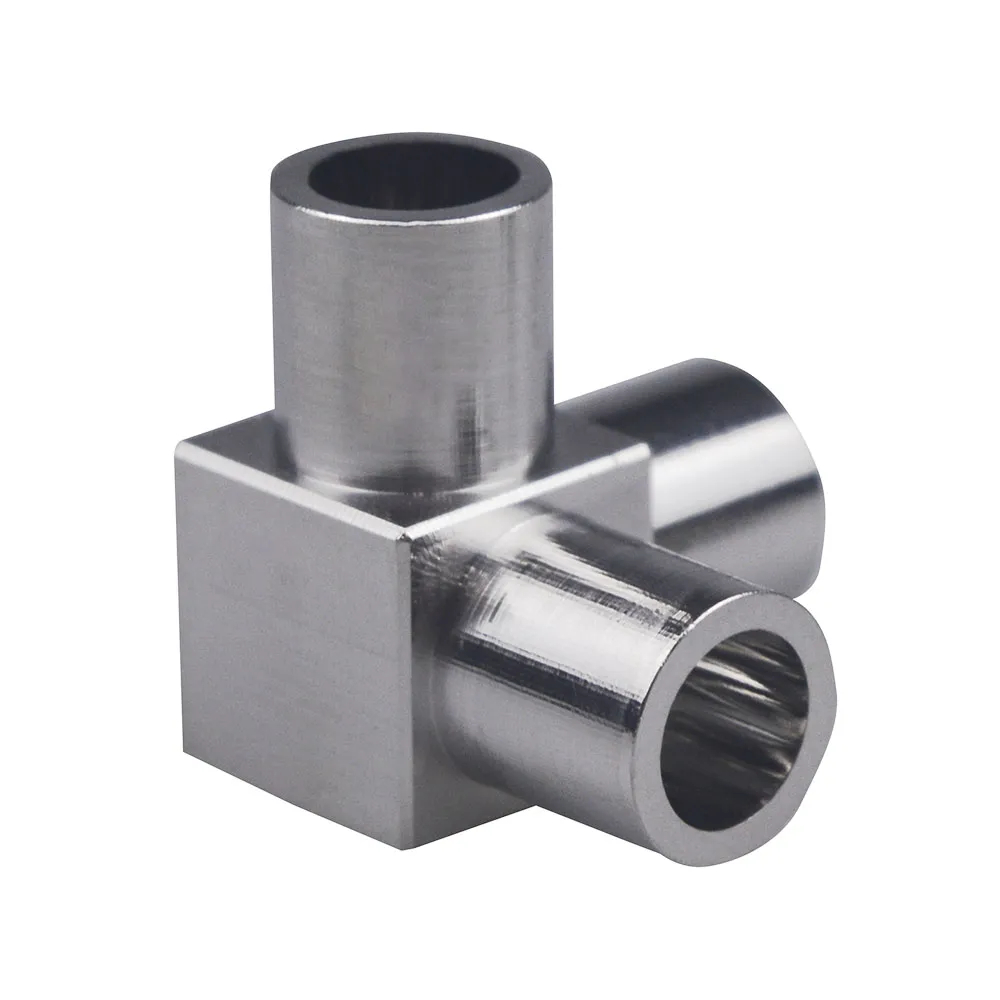

Tribows, P/N: -ID-TB6M.

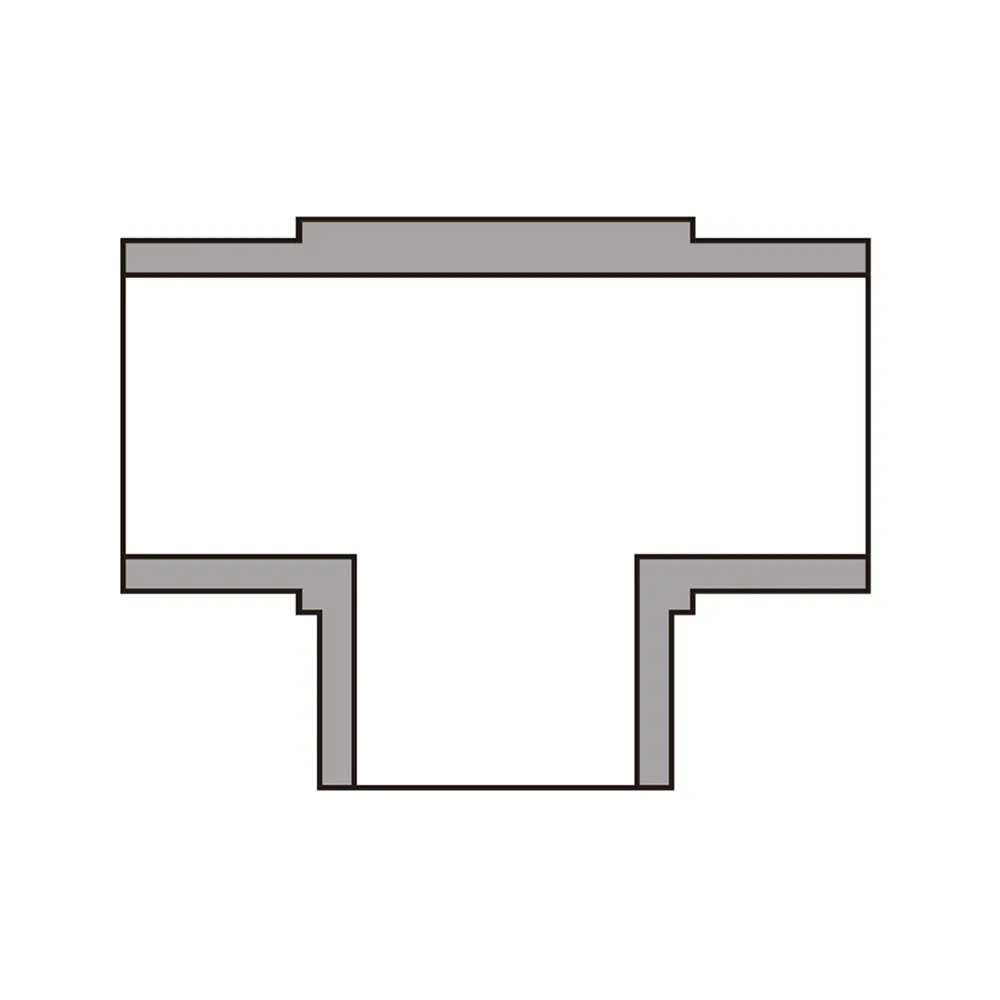

Union Tees P/N: -IT-TB2 -IT-TB6M etc.

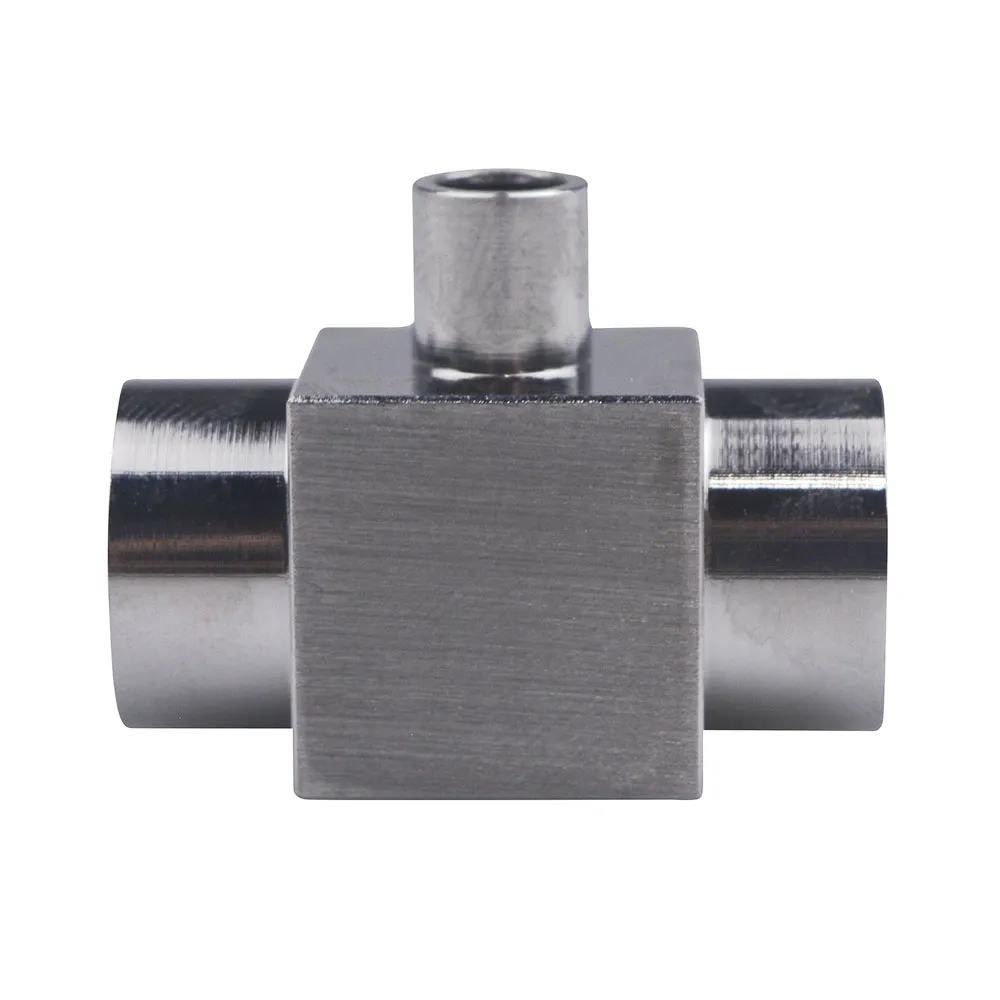

Reducing Tees, P/N: -IT-TB6-TB6-TB4 -IT-TB10M-TB10M-TB6M etc.

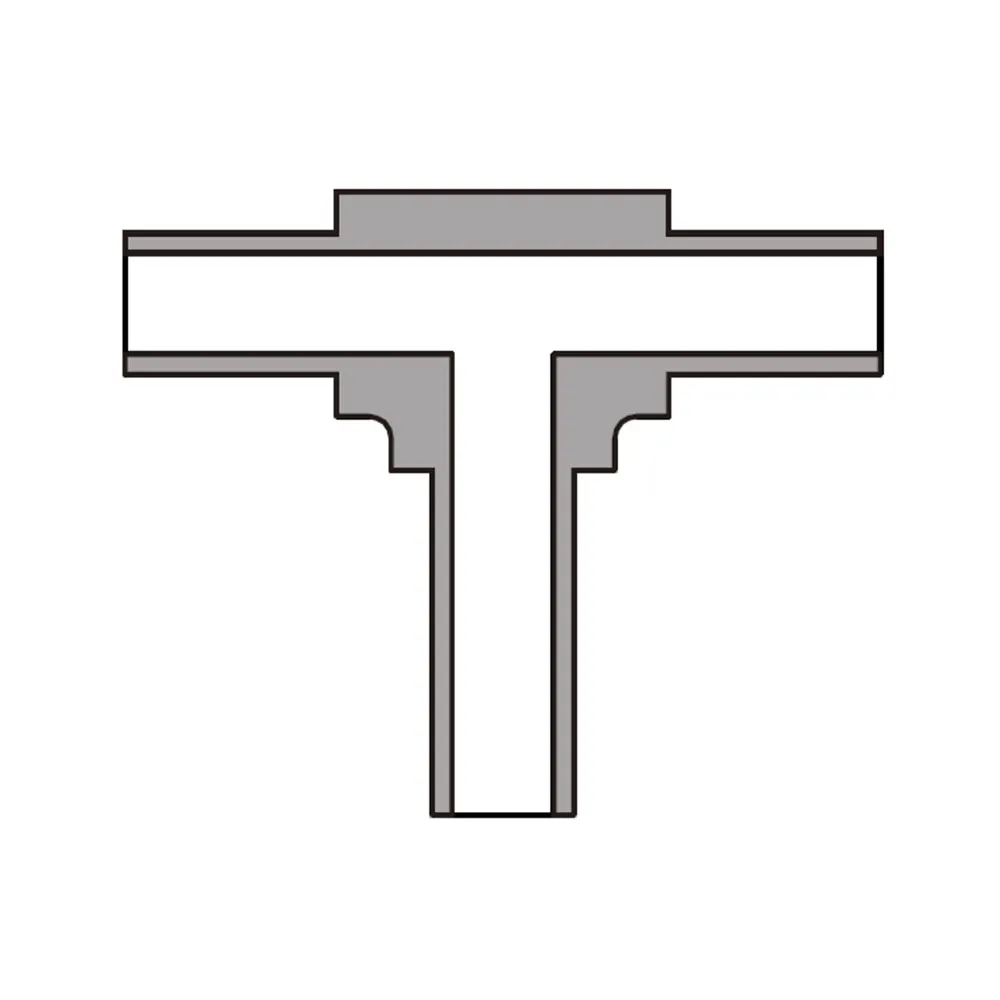

Extended Branch Leg Union Tees, P/N: -IT-TB4-45 etc.

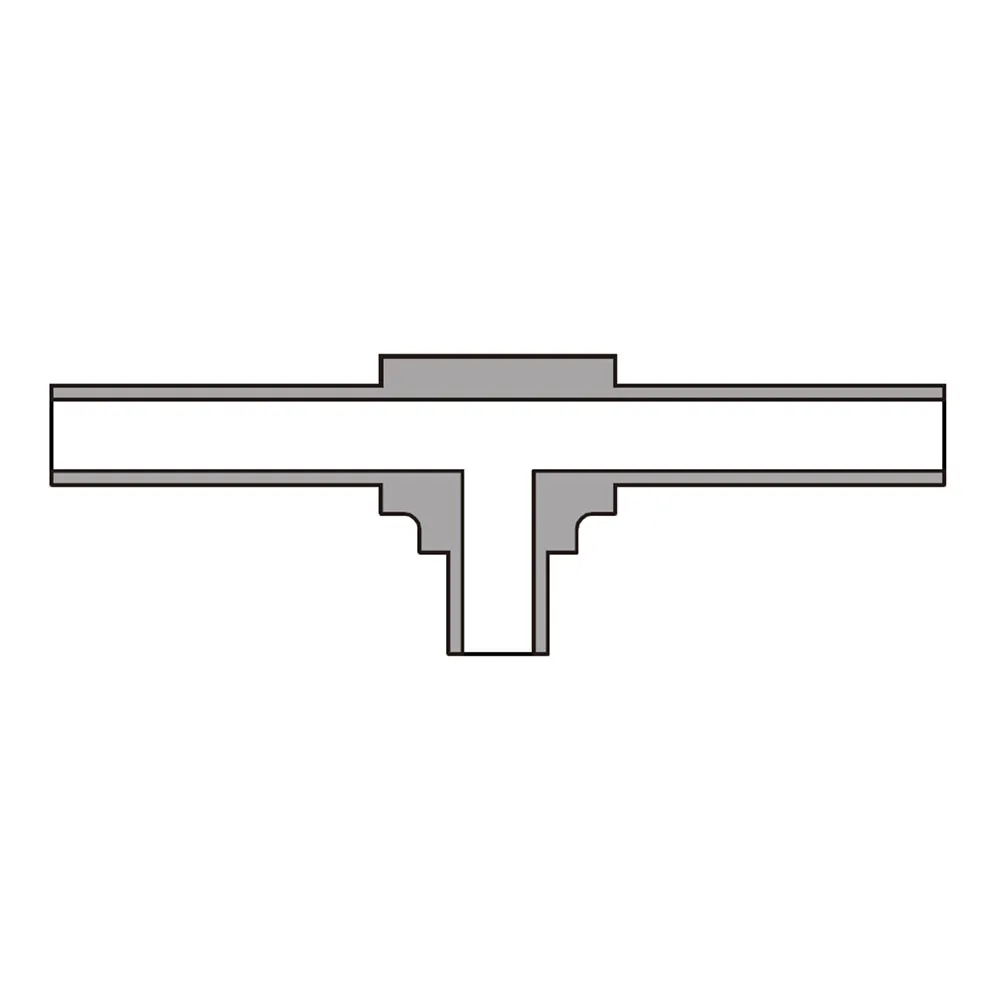

Extended Run Leg Union Tees, P/N: -IT-TB4-25 etc.

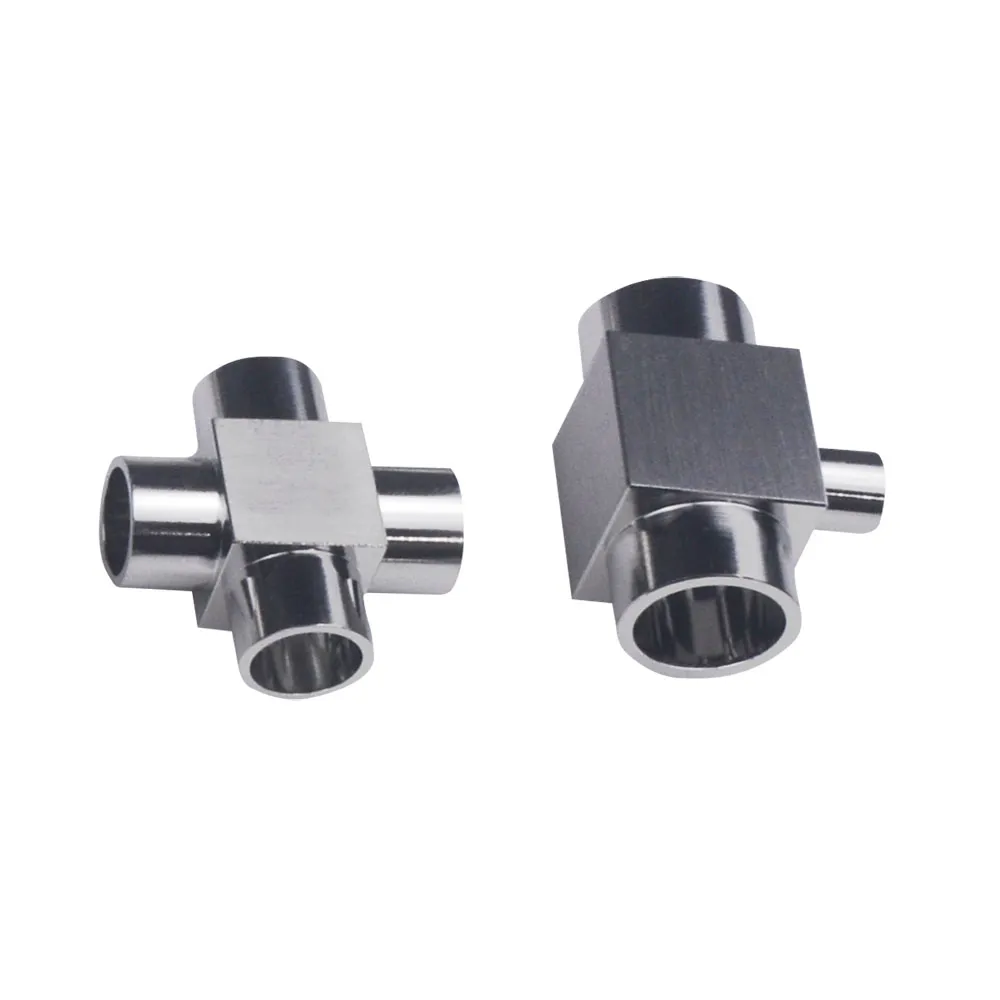

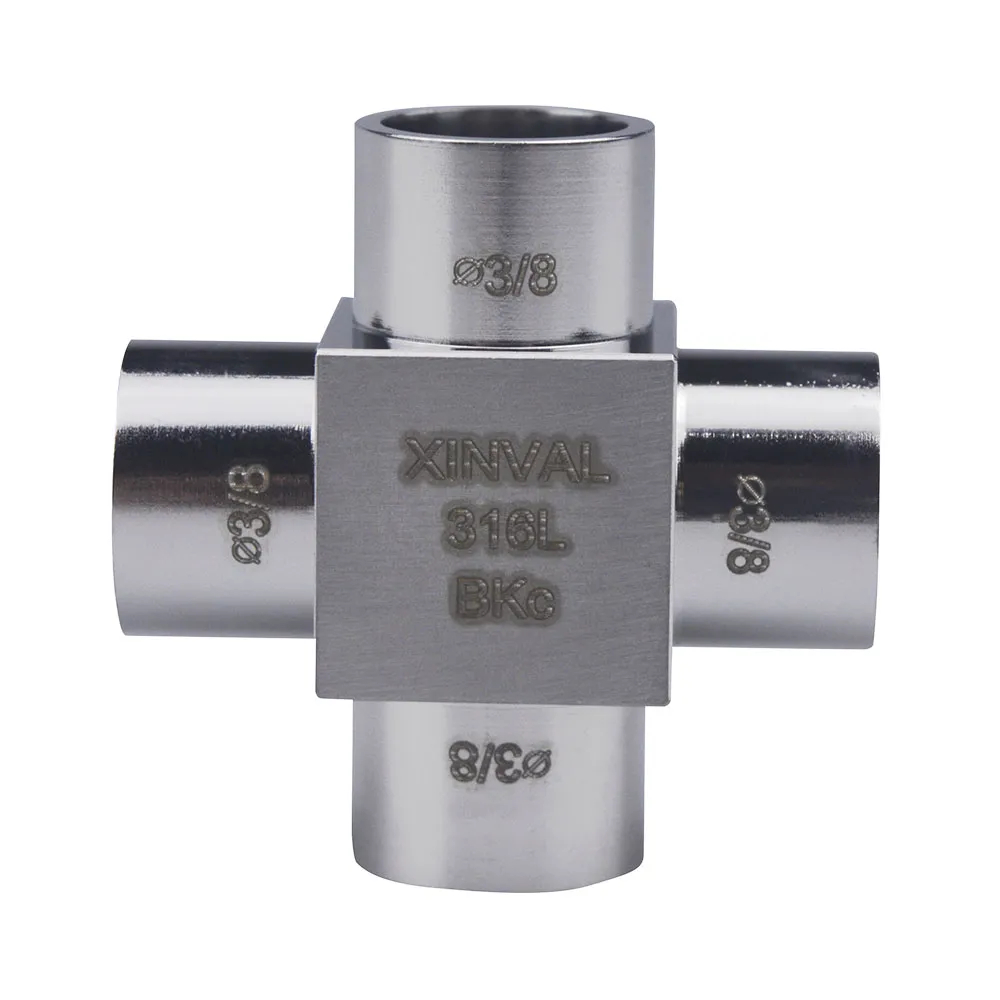

Union Crosses, P/N: -IC-TB2 -IC-TB6M etc.
